TVA1214.5
CAP ALUM 5000UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

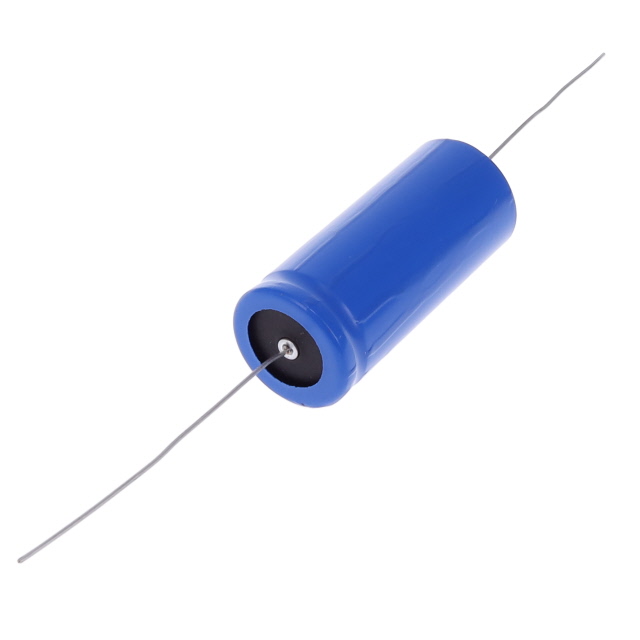

Vishay Sprague TVA ATOM® series, part number TVA1214-5, is a 5000 µF, 25 V polarized aluminum electrolytic capacitor with an axial, can package. This through-hole mounted component features a capacitance tolerance typically found in high-performance audio applications. Its operating temperature range is -40°C to 85°C. The physical dimensions are 1.125 inches in diameter and 2.625 inches in length (28.58mm x 66.67mm). This capacitor is suitable for demanding audio systems and other applications requiring robust bulk capacitance.
Additional Information
Series: TVA ATOM®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | - |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.125"" Dia x 2.625"" L (28.58mm x 66.67mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Audio |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | - |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 5000 µF |
| Voltage - Rated | 25 V |
