TVA1207.5
CAP ALUM 150UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

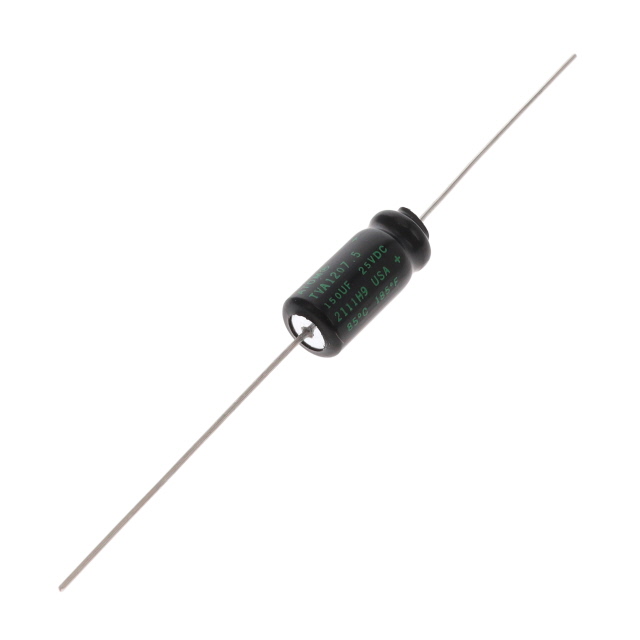

Vishay Sprague TVA ATOM® series, part number TVA1207-5, is a 150 µF 25 V polarized aluminum electrolytic capacitor with an axial leaded, can package. This through-hole component features a capacitance of 150 µF and a maximum working voltage of 25 V. The physical dimensions are 9.52mm in diameter by 20.62mm in length. Operating within a temperature range of -40°C to 85°C, this capacitor is suitable for audio applications. The TVA1207-5 is supplied in bulk packaging.
Additional Information
Series: TVA ATOM®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | - |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.375"" Dia x 0.812"" L (9.52mm x 20.62mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Audio |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | - |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 150 µF |
| Voltage - Rated | 25 V |
