TE1504-E3
CAP ALUM 5UF 150V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

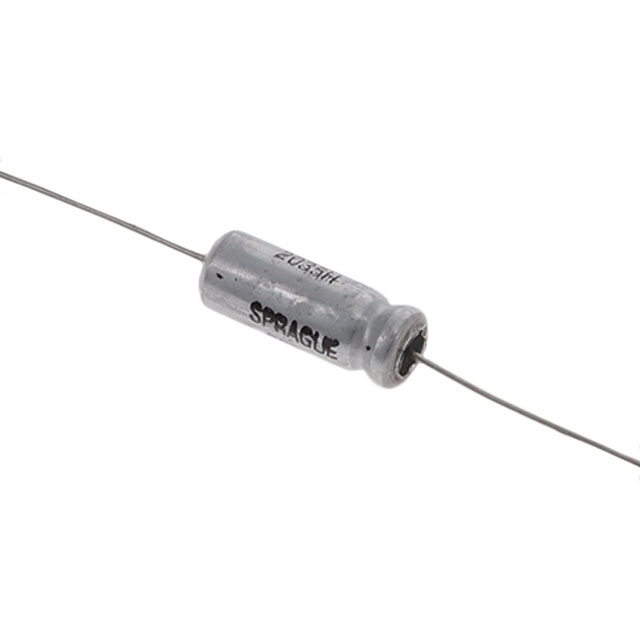

Vishay Sprague TE Series TE1504-E3 is a 5 µF, 150 V polarized aluminum electrolytic capacitor with an axial can package. This component is rated for 2000 hours of operation at 85°C. It features a capacitance tolerance of -10%, +50% and an operating temperature range of -40°C to 105°C. The dimensions are 0.315 inches (8.00mm) in diameter by 0.807 inches (20.50mm) in length. This capacitor is suitable for general-purpose applications across various industrial sectors.
Additional Information
Series: TERoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.315"" Dia x 0.807"" L (8.00mm x 20.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 5 µF |
| Voltage - Rated | 150 V |
