53D622G025HL6
CAP ALUM 6200UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

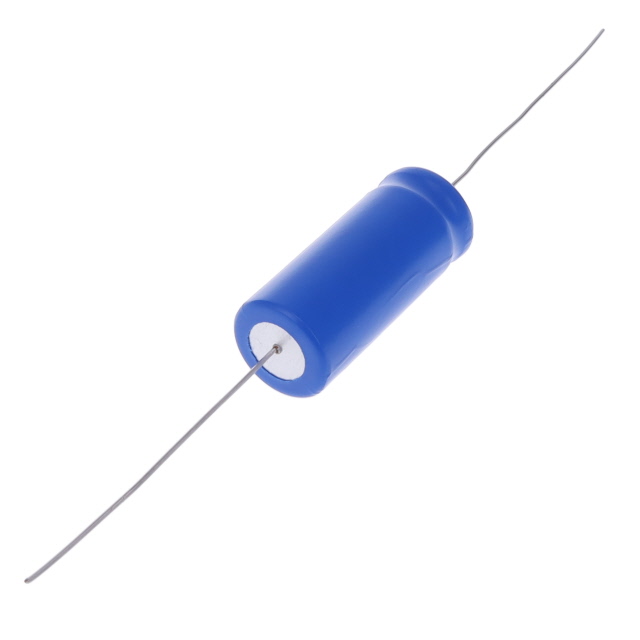

Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D622G025HL6. This axial-can component offers a capacitance of 6200 µF with a 25 V voltage rating. Featuring an equivalent series resistance of 51 mOhm at 120 Hz, it supports a ripple current of 2.87 A at 120 Hz and 3.301 A at 10 kHz. The capacitor is rated for 1000 hours of operation at 85°C and operates within a temperature range of -40°C to 85°C. Its dimensions are 22.50mm in diameter by 54.40mm in length. This component is suitable for general-purpose applications across various industries including industrial power supplies and consumer electronics.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 51mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 6200 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ Low Frequency | 2.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.301 A @ 10 kHz |
