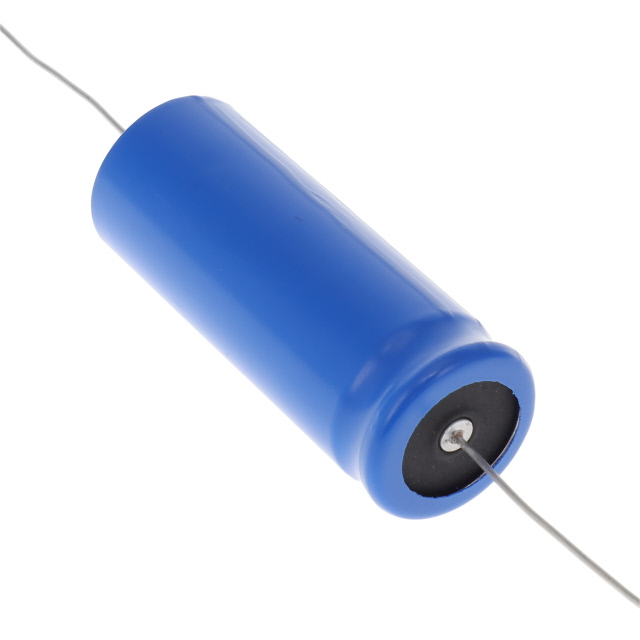

53D502G050JP6
CAP ALUM 5000UF 50V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D502G050JP6, offers a 5000 µF capacitance with a 50 V voltage rating. This axial can component features an ESR of 40 mOhm at 120 Hz and a ripple current capability of 3.81 A at 120 Hz, extending to 4.382 A at 1 kHz. Designed for through-hole mounting, it operates within a temperature range of -40°C to 85°C and provides a rated lifetime of 1000 hours at 85°C. Its dimensions are 25.70mm in diameter and 67.10mm in length. Applications include general-purpose uses in industrial and consumer electronics.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 2.642"" L (25.70mm x 67.10mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 5000 µF |
| Voltage - Rated | 50 V |
| Ripple Current @ Low Frequency | 3.81 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.382 A @ 1 kHz |
