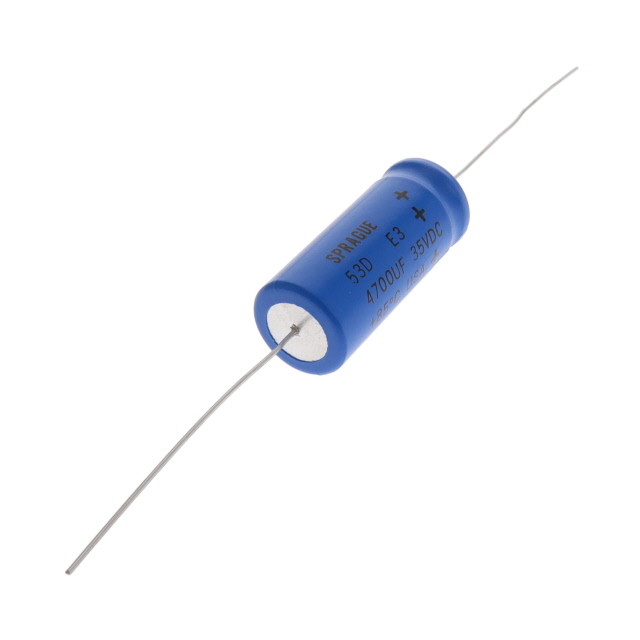

53D472G035HL6E3
CAP ALUM 4700UF 35V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series axial aluminum electrolytic capacitor, part number 53D472G035HL6E3. This component offers a capacitance of 4700 µF with a voltage rating of 35 V. It features an equivalent series resistance of 54 mOhm at 120 Hz and a rated lifetime of 1000 hours at 85°C. The capacitor has a ripple current capability of 2.78 A at 120 Hz and 3.197 A at 1 kHz. Its dimensions are 22.50mm diameter by 54.40mm length. This general-purpose capacitor is suitable for through-hole mounting and operates within a temperature range of -40°C to 85°C. Common applications include power supplies, industrial equipment, and automotive systems.
Additional Information
Series: 53DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 54mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 4700 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 2.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.197 A @ 1 kHz |
