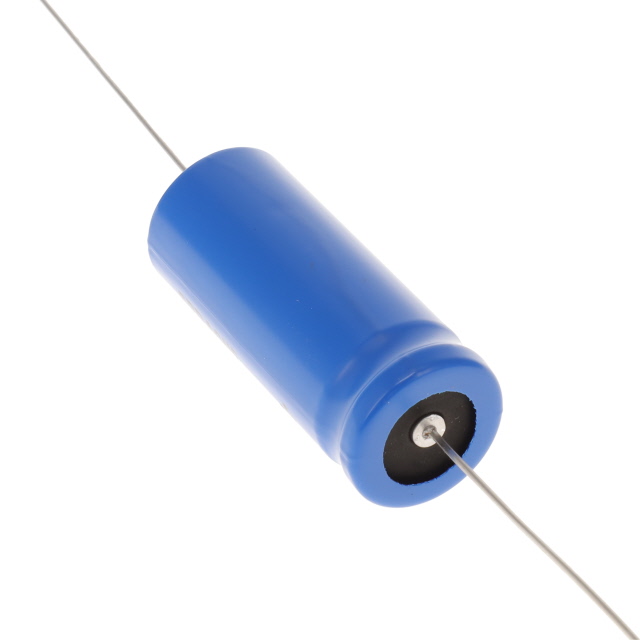

53D472G035HL6
CAP ALUM 4700UF 35V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D472G035HL6, offers a capacitance of 4700 µF with a rated voltage of 35 V. This axial, can component features an Equivalent Series Resistance (ESR) of 54 mOhm at 120 Hz and a rated ripple current of 2.78 A at 120 Hz, extending to 3.197 A at 1 kHz. The capacitor is designed for through-hole mounting and operates within a temperature range of -40°C to 85°C, with a specified lifetime of 1000 hours at 85°C. Its dimensions are 22.50mm in diameter by 54.40mm in length. This component is suitable for general-purpose applications across various industrial sectors.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 54mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 4700 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 2.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.197 A @ 1 kHz |
