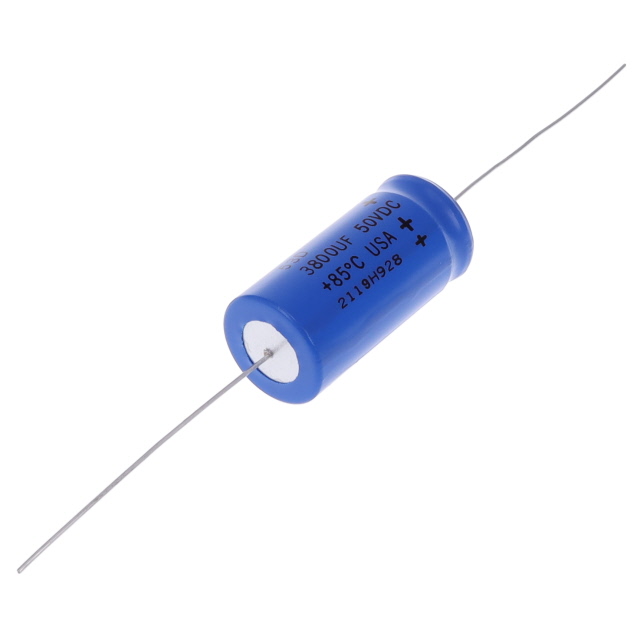

53D382G050JL6
CAP ALUM 3800UF 50V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D382G050JL6. This axial, can package component offers a capacitance of 3800 µF with a voltage rating of 50 V. Featuring an equivalent series resistance of 51 mOhm at 120 Hz, this polarized capacitor is rated for 1000 hours of operation at 85°C. Its dimensions are 25.70 mm in diameter by 54.40 mm in length. The 53D series finds application in general-purpose designs across various industrial and consumer electronics sectors. Ripple current capabilities include 3.09 A at 120 Hz and 3.554 A at 1 kHz. Operating temperature range is -40°C to 85°C.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 2.142"" L (25.70mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 51mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 3800 µF |
| Voltage - Rated | 50 V |
| Ripple Current @ Low Frequency | 3.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.554 A @ 1 kHz |
Request a Quote
