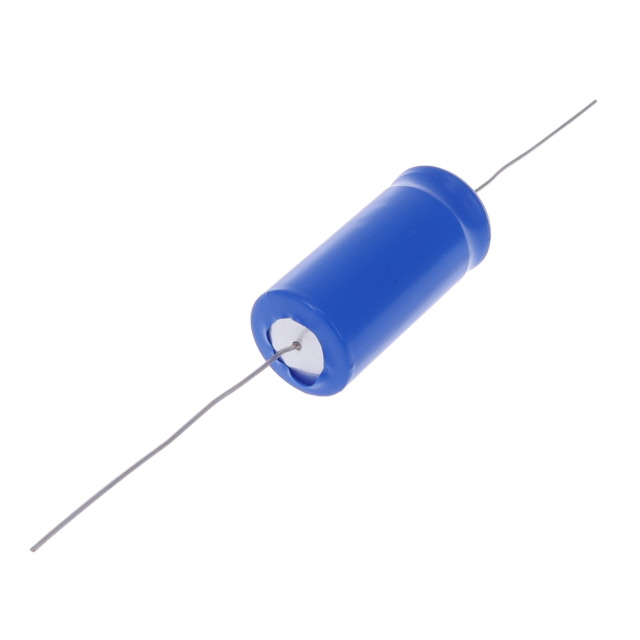

53D351F200JL6
CAP ALUM 350UF 200V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series axial aluminum electrolytic capacitor, part number 53D351F200JL6. This polarized capacitor offers a capacitance of 350 µF with a voltage rating of 200 V. It features a low Equivalent Series Resistance (ESR) of 499 mOhm at 120 Hz and a ripple current capability of 1.2 A at 1 kHz. Designed for through-hole mounting, the component has an axial can package with dimensions of 25.70mm diameter and 54.40mm length. The operational temperature range is -40°C to 85°C, with a rated lifetime of 1000 hours at 85°C. This component is suitable for general-purpose applications across various industrial sectors.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 2.142"" L (25.70mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 499mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 350 µF |
| Voltage - Rated | 200 V |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 1 kHz |
