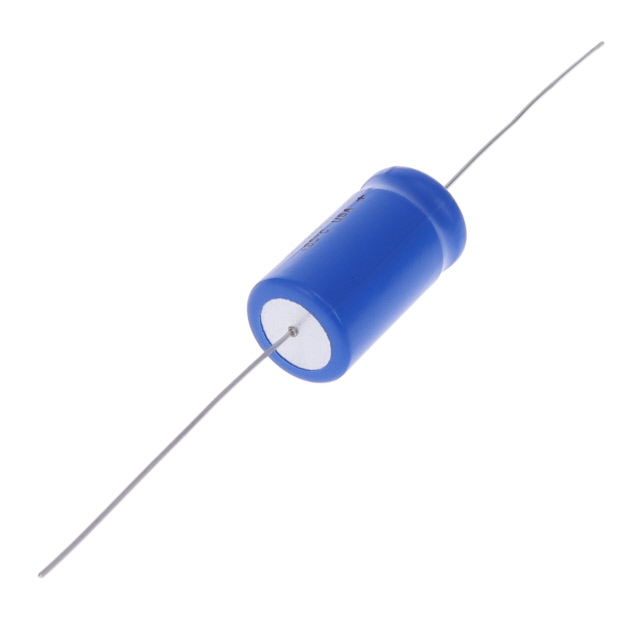

53D322G035HJ6
CAP ALUM 3200UF 35V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D322G035HJ6. This axial, polarized capacitor offers a capacitance of 3200 µF with a voltage rating of 35 V. Key electrical characteristics include an equivalent series resistance (ESR) of 77 mOhm at 120 Hz and a ripple current rating of 2.09 A at 120 Hz, increasing to 2.404 A at 1 kHz. Designed for a nominal lifetime of 1000 hours at 85°C, this component operates across a temperature range of -40°C to 85°C. Its physical dimensions are 22.50mm in diameter by 41.70mm in length. This component is suitable for general-purpose applications and is supplied in bulk packaging for through-hole mounting.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 1.642"" L (22.50mm x 41.70mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 77mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 3200 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 2.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.404 A @ 1 kHz |
