53D222G063HL6E3
CAP ALUM 2200UF 63V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

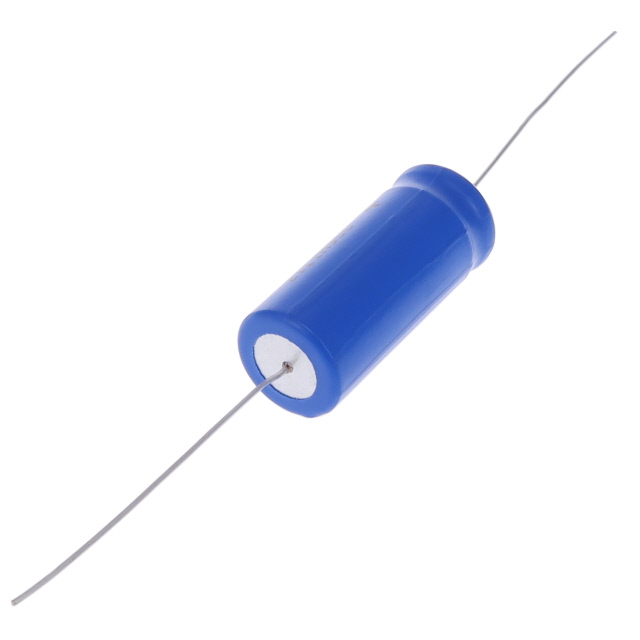

Vishay Sprague 53D series axial aluminum electrolytic capacitor, part number 53D222G063HL6E3, offers a capacitance of 2200 µF with a working voltage of 63 V. This polar capacitor features a low Equivalent Series Resistance (ESR) of 86 mOhm at 120 Hz and a rated ripple current of 2.21 A at 120 Hz, increasing to 2.652 A at 1 kHz. It is designed for through-hole mounting with an axial can package, measuring 22.50mm in diameter and 54.40mm in length. The component has an operating temperature range of -40°C to 85°C and a specified lifetime of 1000 hours at 85°C. This component is suitable for general-purpose applications across various industries including industrial automation and power supplies.
Additional Information
Series: 53DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 86mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2200 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.652 A @ 1 kHz |
