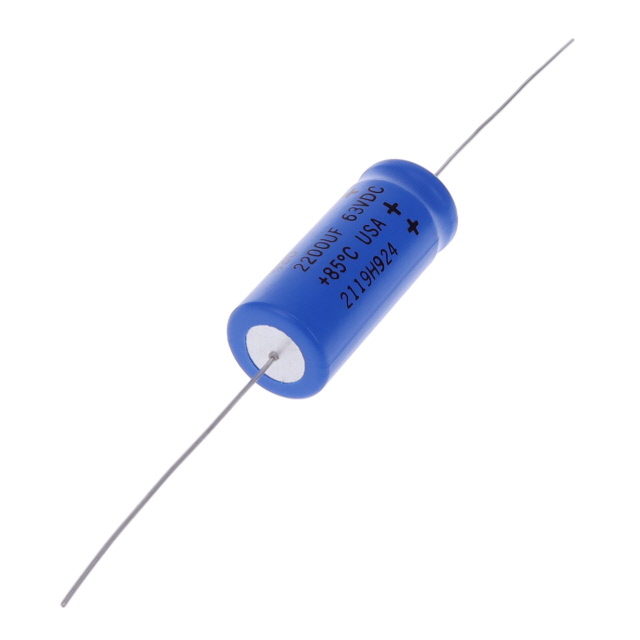

53D222G063HL6
CAP ALUM 2200UF 63V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 53D series aluminum electrolytic capacitor. This axial component offers a capacitance of 2200 µF with a voltage rating of 63 V. Featuring an Equivalent Series Resistance (ESR) of 86 mOhms at 120 Hz, the 53D222G063HL6 is rated for 1000 hours of operation at 85°C. Its dimensions are 22.50 mm in diameter by 54.40 mm in length. The Vishay Sprague 53D222G063HL6 is suitable for general-purpose applications and is commonly found in industrial, automotive, and consumer electronics. It operates within a temperature range of -40°C to 85°C.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 86mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2200 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.652 A @ 1 kHz |
Request a Quote
