53D212G035GJ6
CAP ALUM 2100UF 35V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

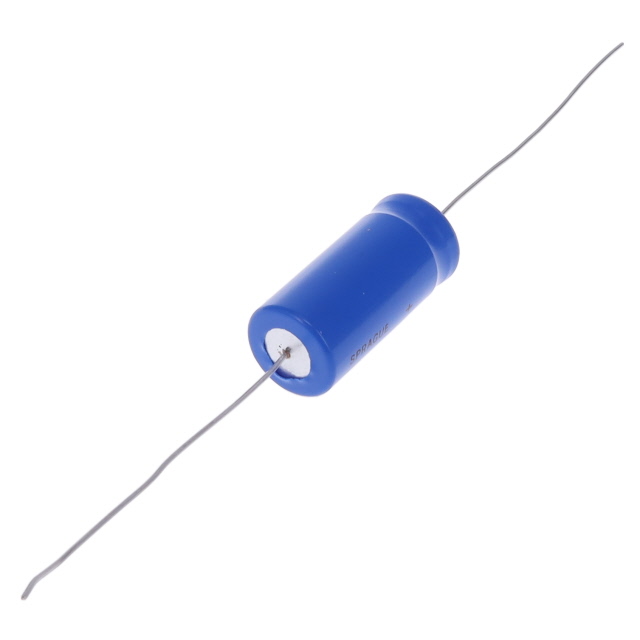

Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D212G035GJ6. This axial, can-style component offers a capacitance of 2100 µF with a voltage rating of 35 V. It features an equivalent series resistance of 111 mOhm at 120 Hz and is rated for 1000 hours of operation at 85°C. The capacitor has a ripple current capability of 1.59 A at 120 Hz and 1.829 A at 1 kHz. Its dimensions are 19.30 mm in diameter by 41.70 mm in length. Operating temperature range is -40°C to 85°C. This general-purpose capacitor is suitable for applications in industrial, consumer electronics, and automotive sectors.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.760"" Dia x 1.642"" L (19.30mm x 41.70mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 111mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2100 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 1.59 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.829 A @ 1 kHz |
