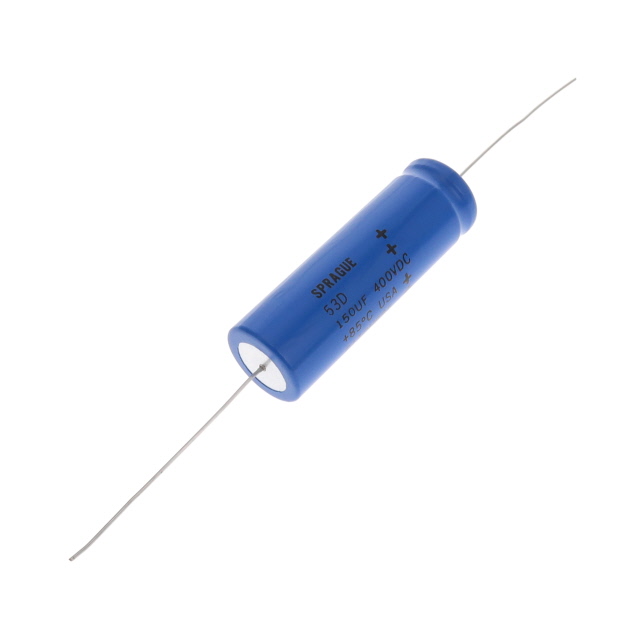

53D151F400JS6
CAP ALUM 150UF 400V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
The Vishay Sprague 53D series 53D151F400JS6 is a 150 µF, 400 V polarized aluminum electrolytic capacitor with an axial can package. This through-hole component features an equivalent series resistance (ESR) of 1.011 Ohm at 120 Hz and a rated lifetime of 1000 hours at 85°C. It offers a ripple current capability of 820 mA at 120 Hz and 1.415 A at 1 kHz. The capacitor's dimensions are 1.012 inches in diameter by 3.142 inches in length (25.70mm x 79.80mm). Operating temperature range is from -40°C to 85°C. This component is suitable for general-purpose applications across various industries, including industrial power supplies and consumer electronics.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 3.142"" L (25.70mm x 79.80mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 1.011Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 150 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.415 A @ 1 kHz |
