53D131F250HJ6
CAP ALUM 130UF 250V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

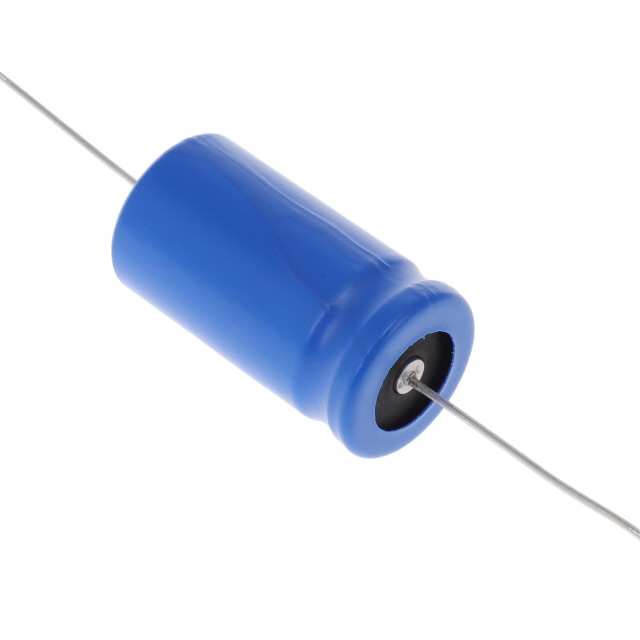

Vishay Sprague 53D series aluminum electrolytic capacitor, part number 53D131F250HJ6, offers 130 µF capacitance with a 250 V voltage rating. This axial, can-packaged component features an equivalent series resistance of 1.238 Ohm at 120 Hz and a rated lifetime of 1000 hours at 85°C. Operating within a temperature range of -40°C to 85°C, it provides a ripple current capability of 520 mA at 120 Hz and 624 mA at 1 kHz. The capacitor's dimensions are 22.50mm in diameter by 41.70mm in length. This component is suitable for general-purpose applications in industries such as industrial power supplies and consumer electronics.
Additional Information
Series: 53DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 1.642"" L (22.50mm x 41.70mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 1.238Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 130 µF |
| Voltage - Rated | 250 V |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 624 mA @ 1 kHz |
