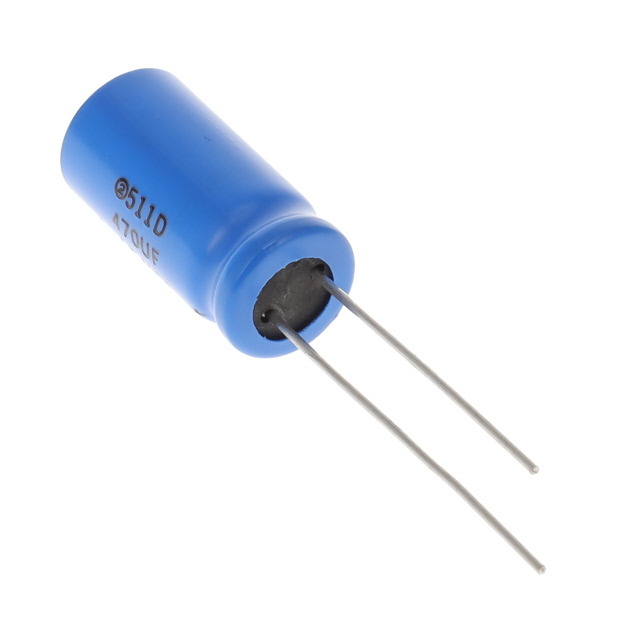

511D477M040DK4D
CAP ALUM 470UF 20% 40V RADIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 511D series aluminum electrolytic capacitor, part number 511D477M040DK4D. This radial, can-style component offers a capacitance of 470 µF with a ±20% tolerance and a 40 VDC rated voltage. It features a low Equivalent Series Resistance (ESR) of 407 mOhm at 120 Hz and an impedance of 157 mOhms. Designed for through-hole mounting with a 5.00 mm lead spacing, this polarized capacitor has a maximum seated height of 26.50 mm and a diameter of 12.50 mm. It is rated for 1000 hours of operation at 105°C, with a ripple current capability of 1.19 A at 40 kHz and 719 mA at 120 Hz. Operating temperature range is -40°C to 105°C. This component is suitable for general-purpose applications in industrial and consumer electronics.
Additional Information
Series: 511DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492"" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197"" (5.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 407mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.043"" (26.50mm) |
| Capacitance | 470 µF |
| Voltage - Rated | 40 V |
| Impedance | 157 mOhms |
| Ripple Current @ Low Frequency | 719 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 40 kHz |
