500D225M450DF2
CAP ALUM 2.2UF 20% 450V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

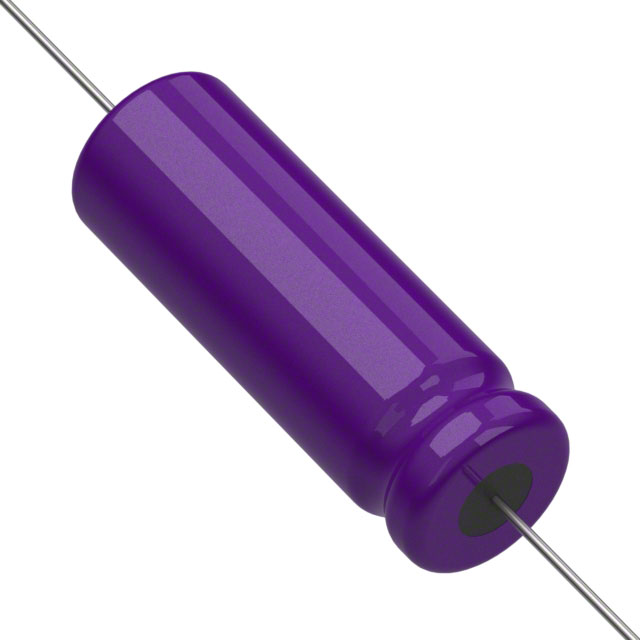

Vishay Sprague 500D series aluminum electrolytic capacitor, part number 500D225M450DF2. This axial-can component offers 2.2 µF capacitance with a ±20% tolerance and a 450 VDC working voltage. Engineered for general-purpose applications, it features a robust 2000-hour lifetime rating at 85°C. The capacitor's dimensions are 9.50mm in diameter by 32.00mm in length. Operating temperature range is -20°C to 85°C. This through-hole mount component is suitable for power supply filtering and decoupling in industrial and consumer electronics.
Additional Information
Series: 500DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.374"" Dia x 1.260"" L (9.50mm x 32.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2.2 µF |
| Voltage - Rated | 450 V |
