39D507G050GL6
CAP ALUM 500UF 50V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

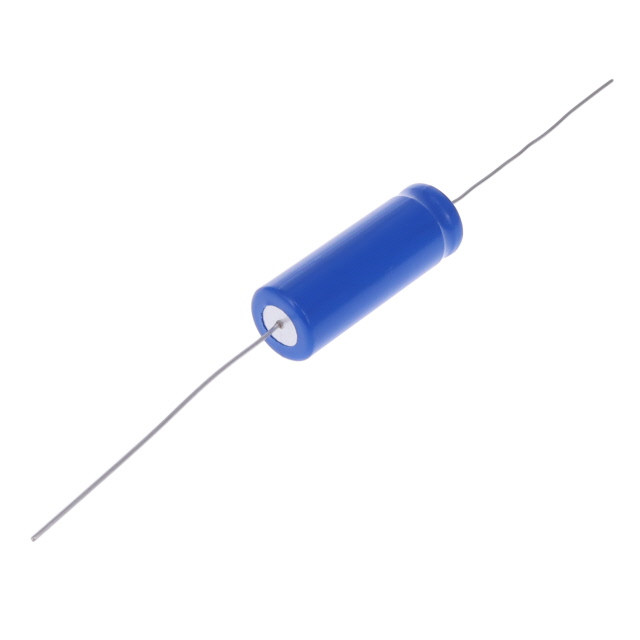

Vishay Sprague 39D series axial aluminum electrolytic capacitor, part number 39D507G050GL6. This polar capacitor offers a capacitance of 500 µF with a 50 V voltage rating. Designed for general-purpose applications, it features a robust construction with a 500-hour operational life at 85°C. The axial package measures 0.760 inches in diameter by 2.142 inches in length. This through-hole component is suitable for use in power supplies and filtering applications across various industrial sectors.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.760"" Dia x 2.142"" L (19.30mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 500 µF |
| Voltage - Rated | 50 V |
