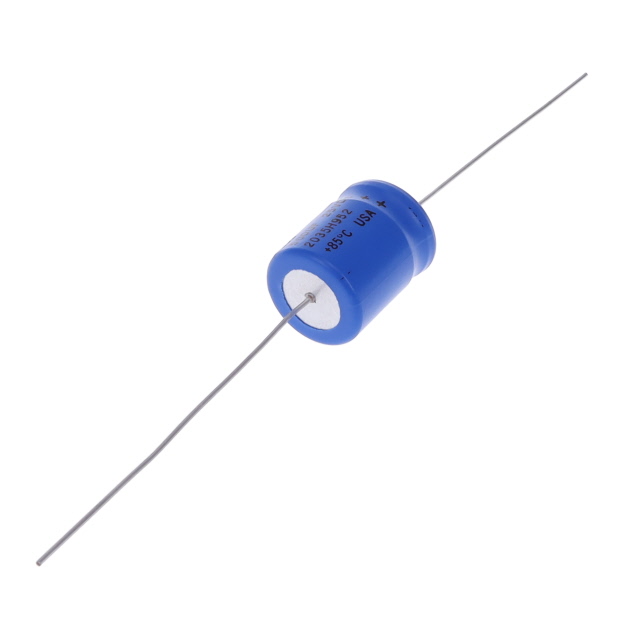

39D507G025HE6
CAP ALUM 500UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague's 39D series aluminum electrolytic capacitor, part number 39D507G025HE6, offers a capacitance of 500 µF with a voltage rating of 25 V. This axial-style capacitor features a 500-hour lifespan at 85°C and is designed for through-hole mounting. Its dimensions are 22.50mm in diameter and 29.00mm in length. Operating within a temperature range of -20°C to 85°C, this polarized component is suitable for general-purpose applications in industries such as consumer electronics and industrial automation. The capacitance tolerance is specified as -10%, +75%.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 1.142"" L (22.50mm x 29.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 500 µF |
| Voltage - Rated | 25 V |
