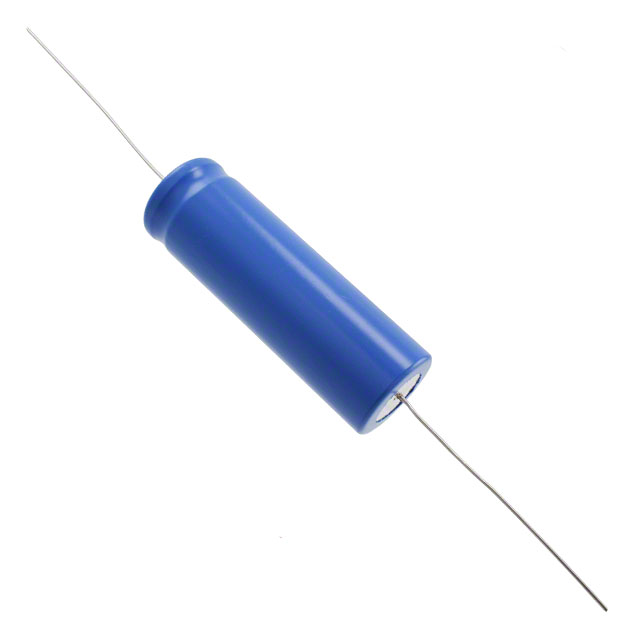

39D408G025JS6
CAP ALUM 4000UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 39D series aluminum electrolytic capacitor, part number 39D408G025JS6. This axial-can component offers a capacitance of 4000 µF with a voltage rating of 25 V. Designed for through-hole mounting, it features a lifespan of 500 hours at 85°C. The capacitor has a nominal diameter of 25.70mm and a length of 79.80mm. Operating temperature range is -20°C to 85°C. This component is suitable for general-purpose applications.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 3.142"" L (25.70mm x 79.80mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 4000 µF |
| Voltage - Rated | 25 V |
