39D257F250JS6
CAP ALUM 250UF 250V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

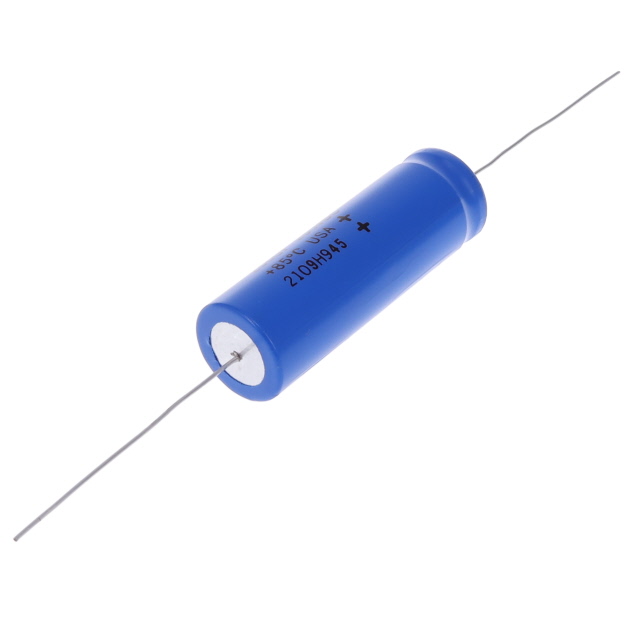

Vishay Sprague 39D series 350V 250µF axial aluminum electrolytic capacitor. This component features a 500-hour lifespan at 85°C and an operating temperature range of -20°C to 85°C. The axial can package has dimensions of 1.012" diameter by 3.142" length (25.70mm x 79.80mm). Designed for general-purpose applications, this polarized capacitor is suitable for use in industrial and consumer electronics. The capacitance tolerance is -10% to +50%.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 3.142"" L (25.70mm x 79.80mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 250 µF |
| Voltage - Rated | 250 V |
