39D248G025JL6
CAP ALUM 2400UF 25V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

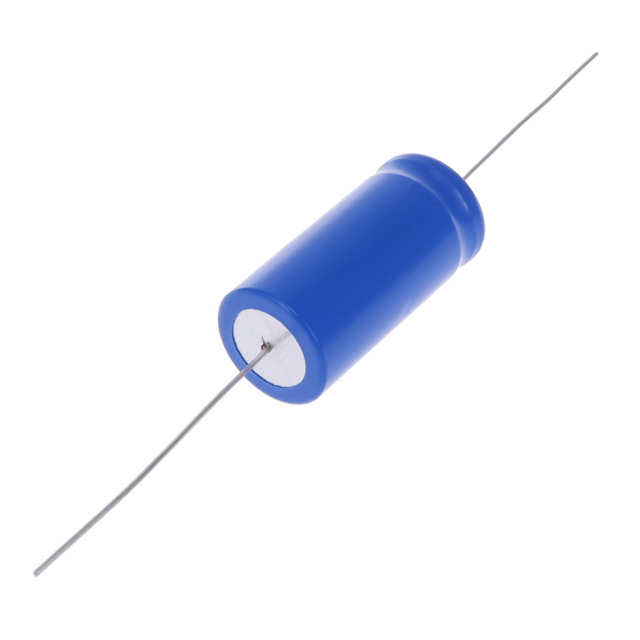

Vishay Sprague 39D series axial aluminum electrolytic capacitor, part number 39D248G025JL6. This polar capacitor offers a capacitance of 2400 µF with a 25 V rating. Designed for through-hole mounting, it features an axial package with a can construction. The component is specified for 500 hours of operation at 85°C. Its dimensions are 25.70 mm in diameter by 54.40 mm in length. This component finds application in general-purpose designs across various electronics sectors. It operates within a temperature range of -20°C to 85°C. Tolerance is -10%, +75%.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 2.142"" L (25.70mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2400 µF |
| Voltage - Rated | 25 V |
