39D238G050JT6
CAP ALUM 2300UF 50V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

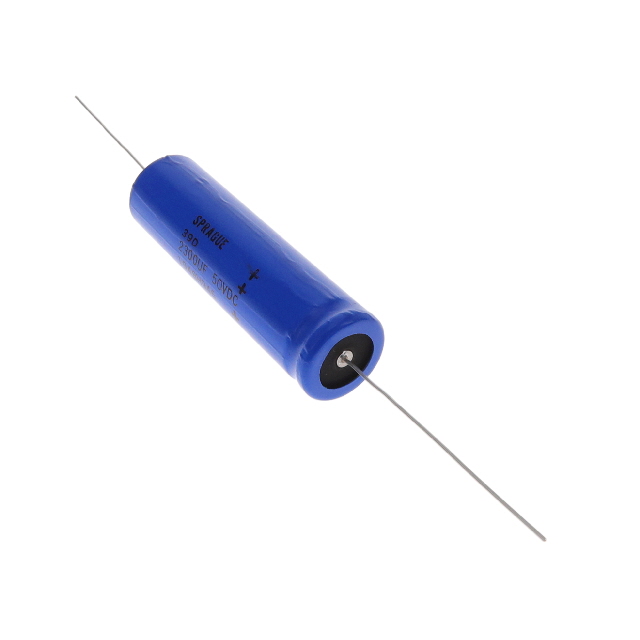

Vishay Sprague 39D series aluminum electrolytic capacitors, part number 39D238G050JT6, offer a capacitance of 2300 µF with a 50 V rating. These axial, can-type components are designed for through-hole mounting and provide 500 hours of operation at 85°C. The capacitance tolerance is -10% to +75%. This component is suitable for general-purpose applications across various industries. The dimensions are 1.012 inches in diameter by 3.642 inches in length.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 1.012"" Dia x 3.642"" L (25.70mm x 92.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 2300 µF |
| Voltage - Rated | 50 V |
