39D107F250HL6
CAP ALUM 100UF 250V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

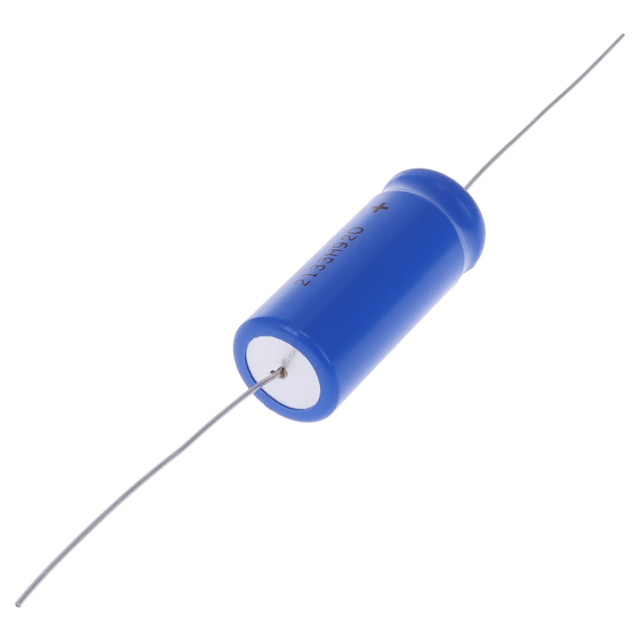

Vishay Sprague 39D series aluminum electrolytic capacitor, part number 39D107F250HL6. This axial, can-style component offers a capacitance of 100 µF with a rated voltage of 250 V. It is designed for through-hole mounting and features a longevity specification of 500 hours at 85°C. The capacitor's dimensions are 0.886 inches (22.50mm) in diameter by 2.142 inches (54.40mm) in length. Operating temperature range is from -20°C to 85°C. This component finds application in general-purpose designs across various industrial sectors.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.886"" Dia x 2.142"" L (22.50mm x 54.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 100 µF |
| Voltage - Rated | 250 V |
