39D107F150FP6
CAP ALUM 100UF 150V AXIAL THManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

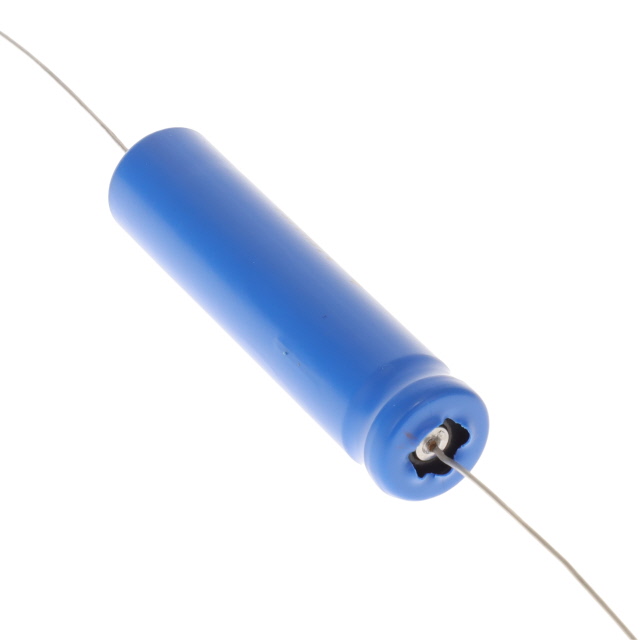

Vishay Sprague 39D series aluminum electrolytic capacitor, part number 39D107F150FP6. This axial, can-style component offers 100 µF of capacitance with a 150 V voltage rating and a tolerance of -10%, +50%. It is rated for 500 hours of operation at 85°C. The capacitor features a through-hole mounting type and operates within a temperature range of -20°C to 85°C. Dimensions are 0.634 inches (16.10mm) in diameter by 2.642 inches (67.10mm) in length. This general-purpose capacitor is suitable for applications in industrial and consumer electronics.
Additional Information
Series: 39DRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.634"" Dia x 2.642"" L (16.10mm x 67.10mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 100 µF |
| Voltage - Rated | 150 V |
