36DY562F050AA2A
CAP ALUM 5600UF 50V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

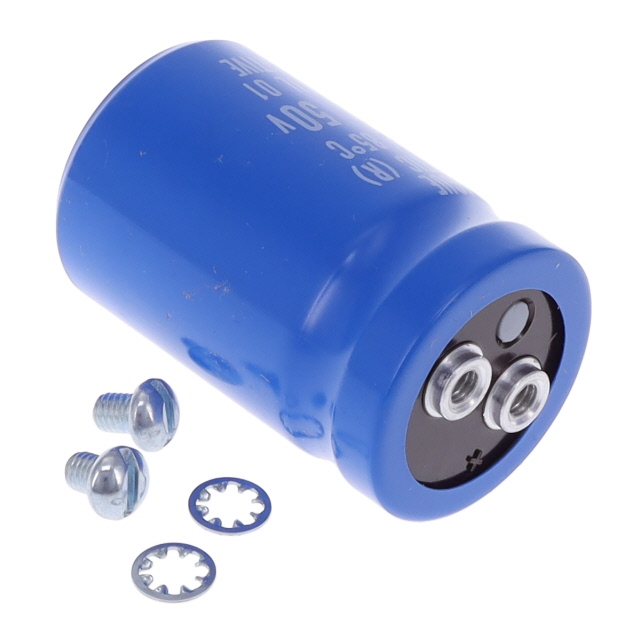

Vishay Sprague 36DY series aluminum electrolytic capacitor, part number 36DY562F050AA2A. This radial, can-style component features screw terminals and a capacitance of 5600 µF with a rated voltage of 50 V. It exhibits an equivalent series resistance of 40 mOhm at 120 Hz and a ripple current rating of 5.25 A at 120 Hz, increasing to 5.775 A at 1 kHz. Designed for chassis mounting, this polarized capacitor has a lifespan of 2000 hours at 85°C and operates within a temperature range of -40°C to 85°C. Dimensions include a diameter of 36.90mm and a height of 57.20mm, with a lead spacing of 12.70mm. Applications include general purpose power supply filtering and energy storage in industrial and consumer electronics.
Additional Information
Series: 36DYRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.453"" Dia (36.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.500"" (12.70mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 2.252"" (57.20mm) |
| Capacitance | 5600 µF |
| Voltage - Rated | 50 V |
| Ripple Current @ Low Frequency | 5.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.775 A @ 1 kHz |
