36DY183F075BC2A
CAP ALUM 18000UF 75V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

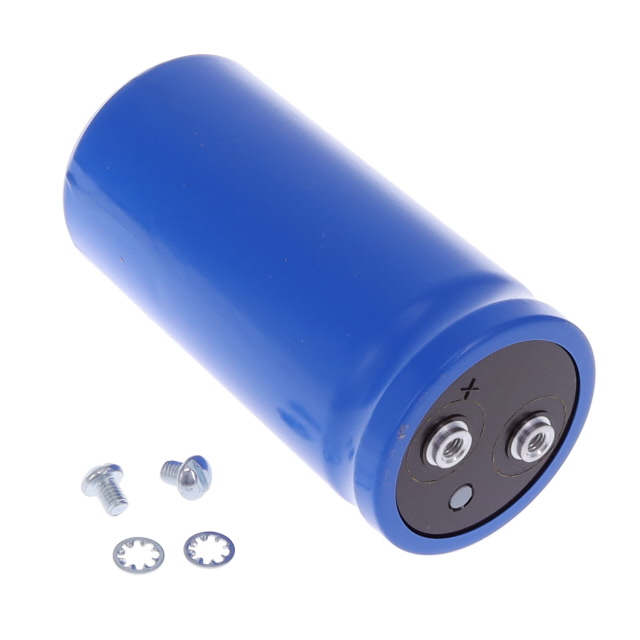

The Vishay Sprague 36DY series aluminum electrolytic capacitor, part number 36DY183F075BC2A, offers a capacitance of 18,000 µF with a 75 V rating. This radial, can-style capacitor features screw terminals for chassis mounting and boasts a low ESR of 13.7 mOhm at 120 Hz. Designed for reliable performance, it has a specified lifetime of 2000 hours at 85°C and a rated ripple current of 14.5 A at 120 Hz. Its dimensions are 2.079" (52.80mm) in diameter and 4.252" (108.00mm) in height, with a lead spacing of 0.875" (22.22mm). Operating within a temperature range of -40°C to 85°C, this polarized component is suitable for general-purpose applications across various industrial and commercial electronics sectors.
Additional Information
Series: 36DYRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.079"" Dia (52.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.875"" (22.22mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 13.7mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 18000 µF |
| Voltage - Rated | 75 V |
| Ripple Current @ Low Frequency | 14.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.675 A @ 1 kHz |
