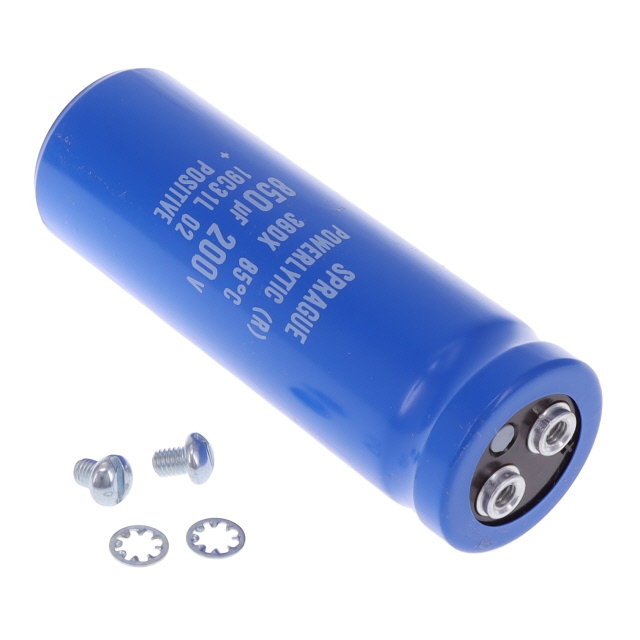

36DX851F200AC2A
CAP ALUM 850UF 200V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX851F200AC2A. This radial, can-style component features screw terminals for chassis mounting and offers a capacitance of 850 µF with a rated voltage of 200 V. Designed for general-purpose applications, it provides a rated lifespan of 1000 hours at 85°C. The dimensions are 1.453 inches in diameter by 4.252 inches in height, with a lead spacing of 0.500 inches. Operating temperature ranges from -40°C to 85°C. This component is suitable for use in industrial and power supply applications.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.453"" Dia (36.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.500"" (12.70mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 850 µF |
| Voltage - Rated | 200 V |
