36DX582G040AB2A
CAP ALUM 5800UF 40V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

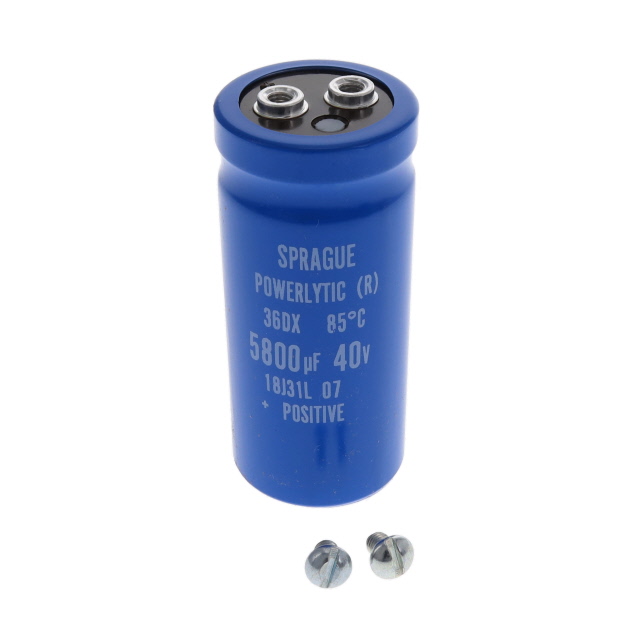

Vishay Sprague 36DX series aluminum electrolytic capacitors, part number 36DX582G040AB2A, offer 5800 µF capacitance with a 40 V rating. These radial, can-type capacitors feature screw terminals for chassis mounting. The 36DX582G040AB2A has a diameter of 1.453 inches (36.90mm) and a height of 3.252 inches (82.60mm), with a lead spacing of 0.500 inches (12.70mm). Designed for general-purpose applications, they are rated for 1000 hours of operation at 85°C. The operating temperature range is -40°C to 85°C. This component is suitable for industrial and automotive power supply filtering and energy storage applications.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.453"" Dia (36.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.500"" (12.70mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 3.252"" (82.60mm) |
| Capacitance | 5800 µF |
| Voltage - Rated | 40 V |
