36DX482G050AB2A
CAP ALUM 4800UF 50V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

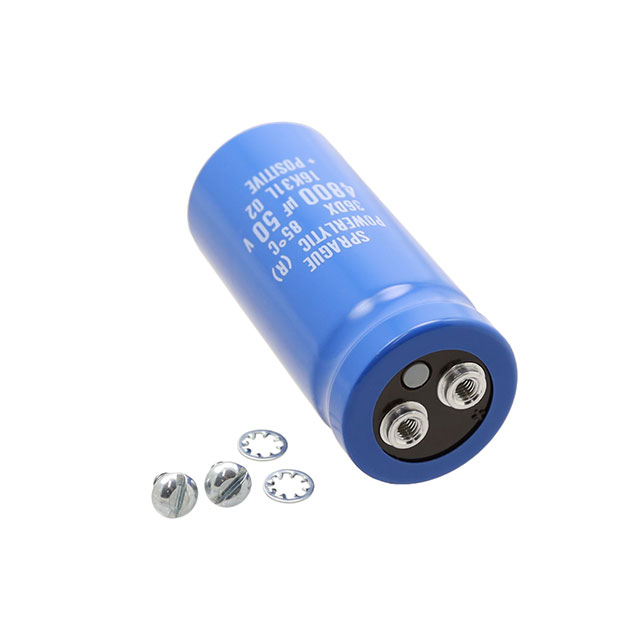

Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX482G050AB2A. This radial, can type component features screw terminals for chassis mounting and offers a capacitance of 4800 µF with a voltage rating of 50 V. Engineered for reliability, it provides a rated lifetime of 1000 hours at 85°C. The capacitor operates within a temperature range of -40°C to 85°C. Its dimensions are 1.453 inches in diameter by 3.252 inches in height, with a lead spacing of 0.500 inches. This component is suitable for general-purpose applications across various industries requiring robust power supply filtering and energy storage.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.453"" Dia (36.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.500"" (12.70mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 3.252"" (82.60mm) |
| Capacitance | 4800 µF |
| Voltage - Rated | 50 V |
