36DX413G050DC2A
CAP ALUM 41000UF 50V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

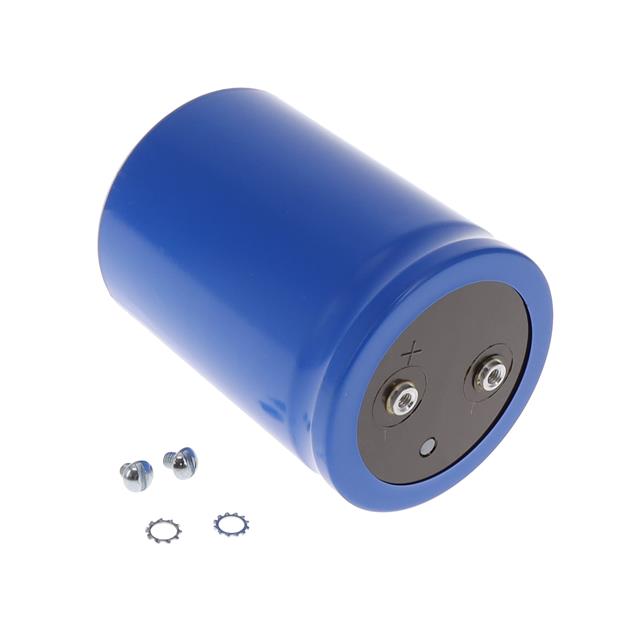

Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX413G050DC2A. This radial, can-type component features screw terminals for chassis mounting and offers a capacitance of 41000 µF with a voltage rating of 50 V. Designed for general-purpose applications, it provides a guaranteed lifetime of 1000 hours at 85°C. The capacitor's dimensions are 3.079 inches (78.20mm) in diameter and 4.252 inches (108.00mm) in height, with a lead spacing of 1.252 inches (31.80mm). Operating temperature range is -40°C to 85°C. This component is suitable for power supply filtering and energy storage in industrial and automotive applications.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.079"" Dia (78.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.252"" (31.80mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 41000 µF |
| Voltage - Rated | 50 V |
