36DX342F200CC2A
CAP ALUM 3400UF 200V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

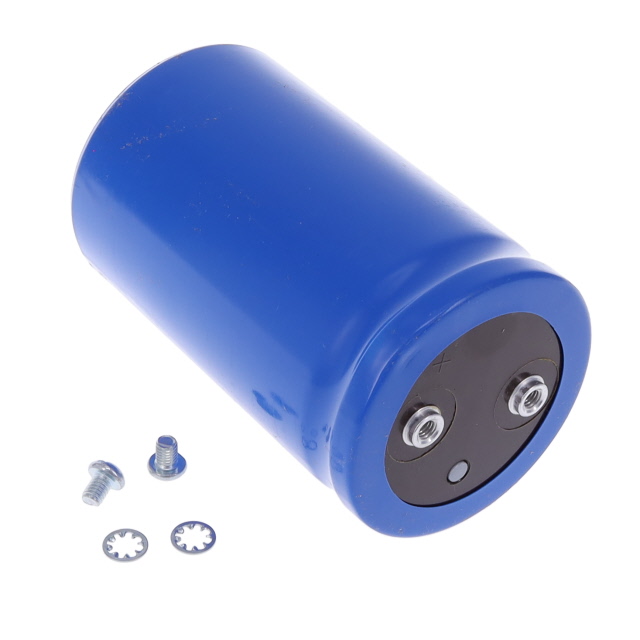

Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX342F200CC2A. This radial leaded component features screw terminals for chassis mounting and offers a capacitance of 3400 µF with a voltage rating of 200 V. Designed for a robust 1000-hour lifespan at 85°C, it operates within a temperature range of -40°C to 85°C. Key dimensions include a diameter of 2.579" (65.50mm) and a height of 4.252" (108.00mm), with a lead spacing of 1.126" (28.60mm). This component is suitable for general-purpose applications, commonly found in industrial power supplies and motor control systems.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.579"" Dia (65.50mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.126"" (28.60mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 3400 µF |
| Voltage - Rated | 200 V |
