36DX242G050AA2A
CAP ALUM 2400UF 50V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

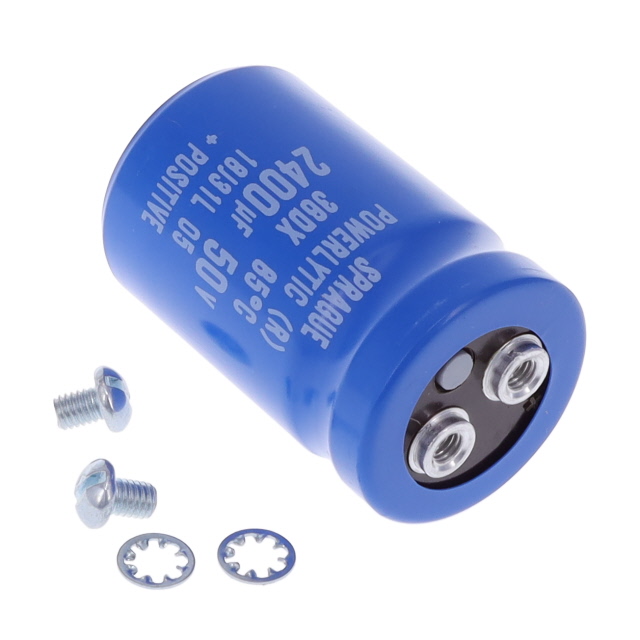

Vishay Sprague 36DX series 36DX242G050AA2A is a 2400 µF, 50 V aluminum electrolytic capacitor. This radial, can-style component features screw terminals for chassis mounting. It offers a capacitance tolerance of -10%, +75% and is rated for 1000 hours of operation at 85°C. The operating temperature range is -40°C to 85°C. Dimensions include a diameter of 1.453 inches (36.90mm) and a height of 2.252 inches (57.20mm), with a lead spacing of 0.500 inches (12.70mm). This component is suitable for general-purpose applications across various industrial sectors.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.453"" Dia (36.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.500"" (12.70mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 2.252"" (57.20mm) |
| Capacitance | 2400 µF |
| Voltage - Rated | 50 V |
