36DX202F450DF2A
CAP ALUM 2000UF 450V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

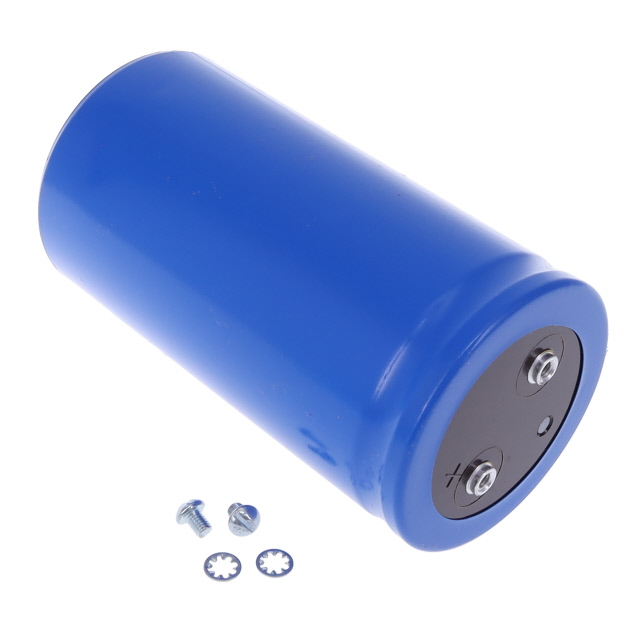

Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX202F450DF2A. This radial, can component features screw terminals for chassis mounting and offers a capacitance of 2000 µF with a voltage rating of 450 V. Designed for general-purpose applications, it provides a rated lifetime of 1000 hours at 85°C. The capacitor has a diameter of 3.079 inches (78.20mm) and a seated height of 5.752 inches (146.10mm), with a lead spacing of 1.252 inches (31.80mm). Operating temperature range is -40°C to 85°C. Typical applications include power supplies and motor control systems.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.079"" Dia (78.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.252"" (31.80mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 5.752"" (146.10mm) |
| Capacitance | 2000 µF |
| Voltage - Rated | 450 V |
