36DX202F200BC2A
CAP ALUM 2000UF 200V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

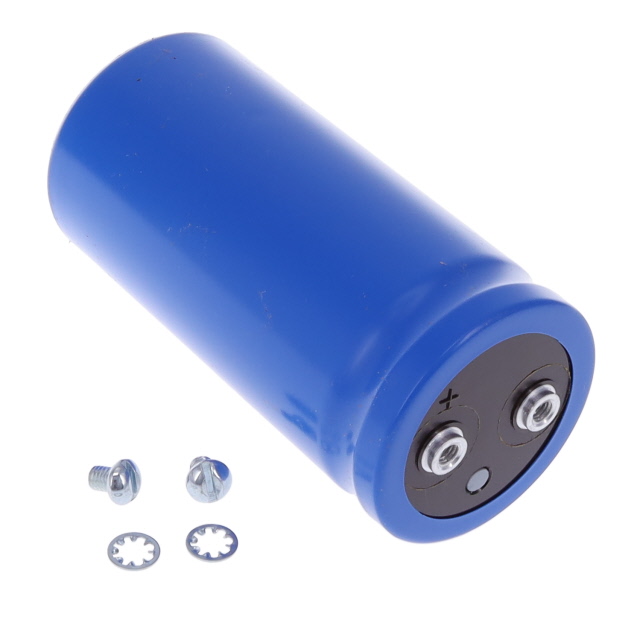

Vishay Sprague 36DX series aluminum electrolytic capacitor, part number 36DX202F200BC2A. This component features a capacitance of 2000 µF with a voltage rating of 200 V. Designed with radial, can-style packaging and screw terminals for secure connection, it offers a chassis mount configuration. The capacitor operates within a temperature range of -40°C to 85°C and provides a lifetime of 1000 hours at 85°C. Key dimensions include a diameter of 2.079 inches (52.80mm) and a height of 4.252 inches (108.00mm), with a lead spacing of 0.875 inches (22.22mm). This polarized component is suitable for general-purpose applications, commonly found in industrial and power supply designs.
Additional Information
Series: 36DXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.079"" Dia (52.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.875"" (22.22mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 2000 µF |
| Voltage - Rated | 200 V |
