36D392G075BB2A
CAP ALUM 3900UF 75V SCREW CHAS MManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

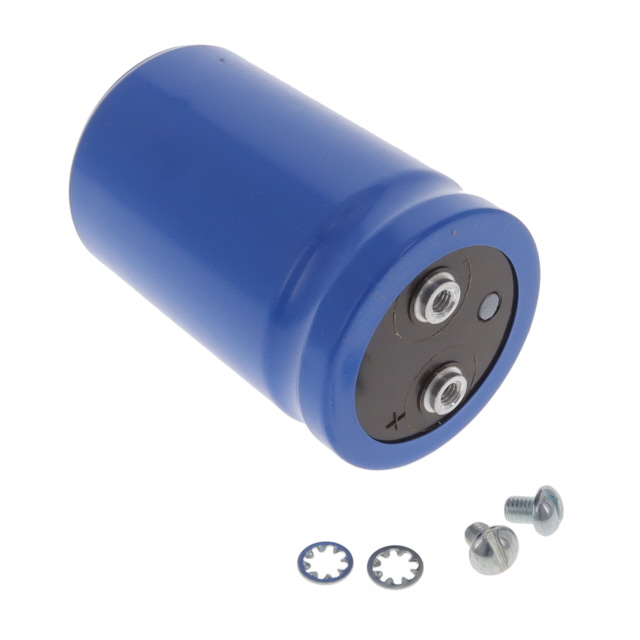

Vishay Sprague 36D series aluminum electrolytic capacitor, part number 36D392G075BB2A. This radial, can-style component features screw terminals for robust connection and a significant 3900 µF capacitance. Rated for 75 V, it offers a 1000-hour operational life at 85°C. The capacitor has a diameter of 2.079 inches (52.80mm) and a height of 3.252 inches (82.60mm), with a lead spacing of 0.875 inches (22.22mm). Operating temperature range is -40°C to 85°C. This component is suitable for general-purpose applications across various industrial sectors including power supplies and motor control.
Additional Information
Series: 36DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +75% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.079"" Dia (52.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.875"" (22.22mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 3.252"" (82.60mm) |
| Capacitance | 3900 µF |
| Voltage - Rated | 75 V |
