36D372F200DC2A
CAP ALUM 3700UF 200V SCREW CHASManufacturer: Vishay Sprague
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

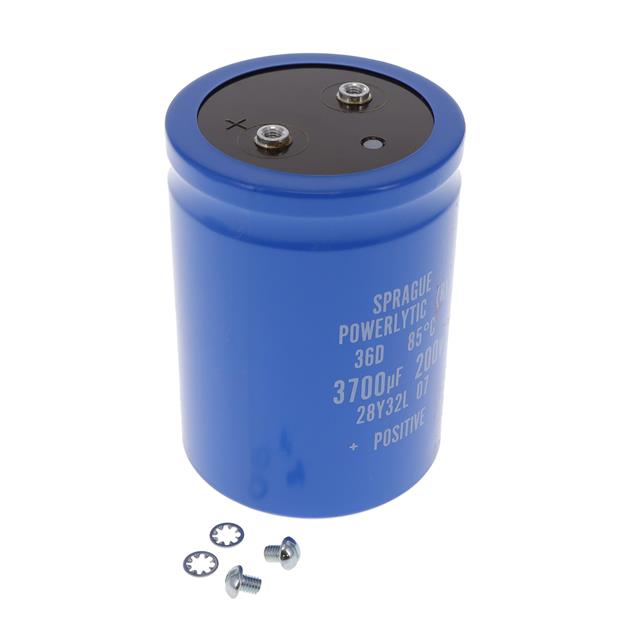

Vishay Sprague 36D series aluminum electrolytic capacitor, part number 36D372F200DC2A. This 3700 µF, 200 V radial capacitor features screw terminals for chassis mounting. Designed for applications requiring high capacitance and reliability, it offers a 1000-hour lifespan at 85°C. The component’s dimensions are 3.079 inches in diameter by 4.252 inches in height, with a lead spacing of 1.252 inches. Operating temperature range is -40°C to 85°C. This polarized capacitor is suitable for general-purpose applications within industrial and power electronics sectors.
Additional Information
Series: 36DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.079"" Dia (78.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.252"" (31.80mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.252"" (108.00mm) |
| Capacitance | 3700 µF |
| Voltage - Rated | 200 V |
