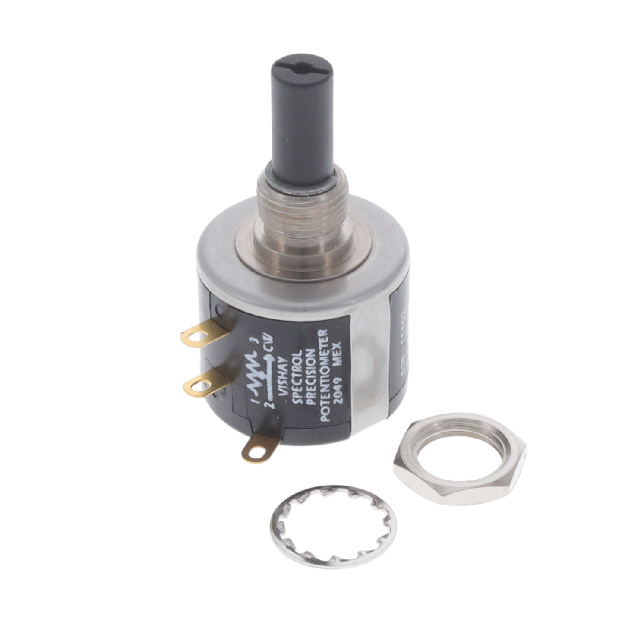

536B102
POT 1K OHM 2W WIREWOUND LINEARManufacturer: Vishay Spectrol
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
Vishay Spectrol 536 Series 536B102 is a 1k Ohm, single-gang, wirewound potentiometer designed for panel mounting. This component features a linear taper with a 10-turn adjustment mechanism, offering 3600° of rotation and a power rating of 2W. The resistive element is wirewound, providing excellent stability and a typical temperature coefficient of 20ppm/°C. Termination is via solder lugs. The actuator is 0.250" (6.35mm) in diameter with a 0.812" (20.63mm) slotted length for user adjustment. The bushing thread is 3/8-32. This component is commonly utilized in industrial automation, test and measurement equipment, and audio control applications where precise manual adjustment is required.
Additional Information
Series: 536RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 1k |
| Power (Watts) | 2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Bulk |
| Temperature Coefficient | 20ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.812"" (20.63mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.250"" (6.35mm) |
| Resistive Material | Wirewound |
| Taper | Linear |
| Rotation | 3600° |
| Number of Gangs | 1 |
| Number of Turns | 10.0 |
Request a Quote
Clients Also Buy
536B101
POT 100 OHM 2W WIREWOUND LINEAR

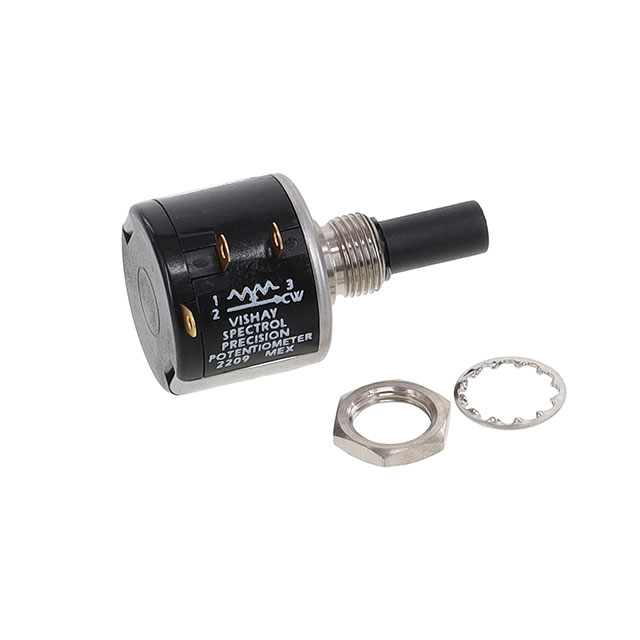

536B103
POT 10K OHM 2W WIREWOUND LINEAR

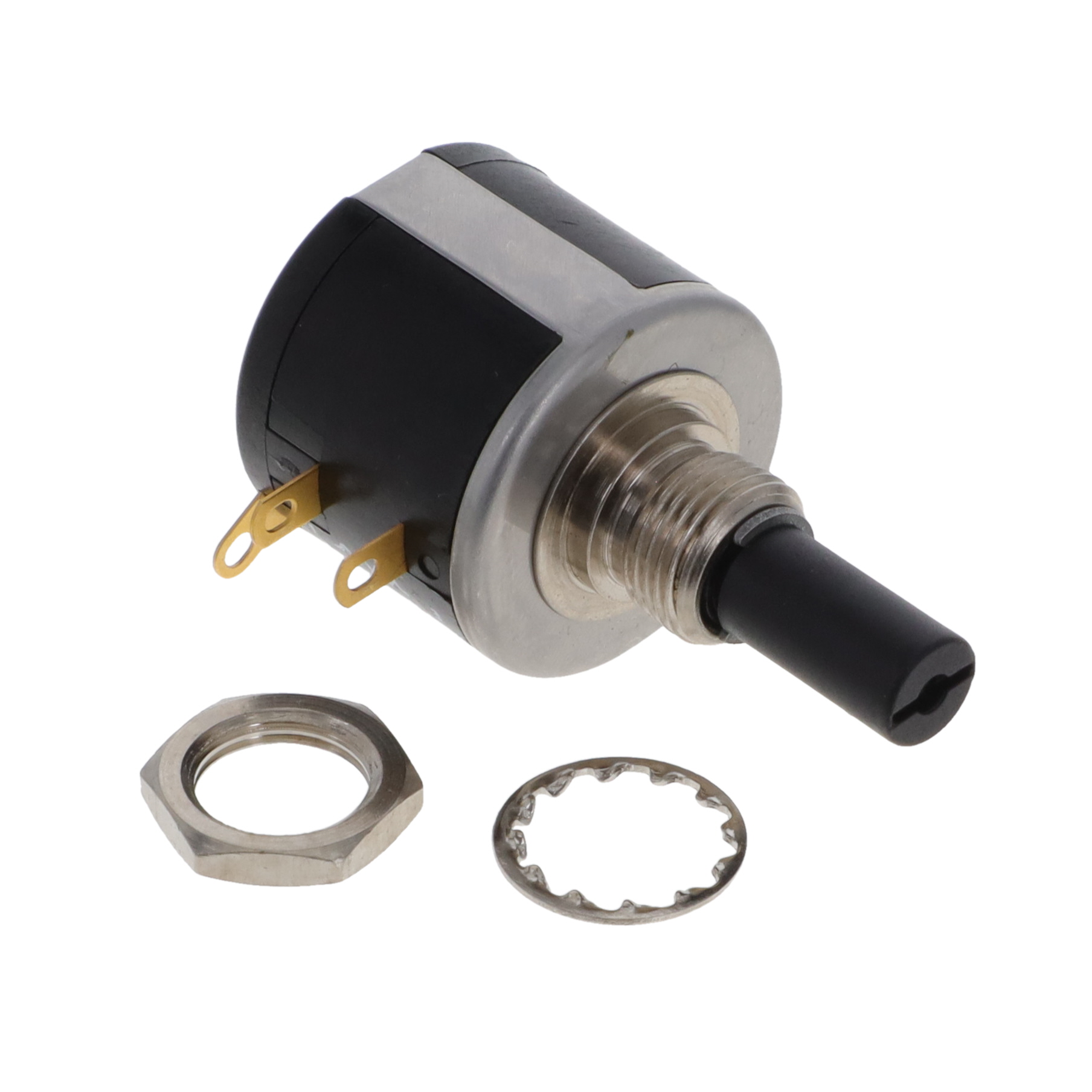

536B104
