357B0502MXB251S22
POT 5K OHM 1W PLASTIC LINEARManufacturer: Vishay Spectrol
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
Additional Information
Series: Model 357RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 5K |
| Power (Watts) | 1W |
| Tolerance | ±20% |
| Features | - |
| Packaging | Box |
| Temperature Coefficient | ±600ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Turret |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.250"" (6.35mm) |
| Resistive Material | Conductive Plastic |
| Taper | Linear |
| Rotation | Continuous |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
Request a Quote
Clients Also Buy

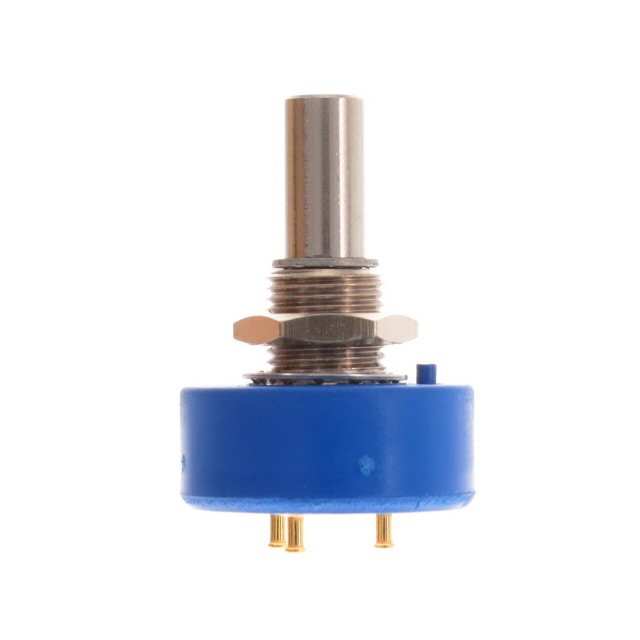

357B0102MXB251P22
