14910F0GJSX10254KA

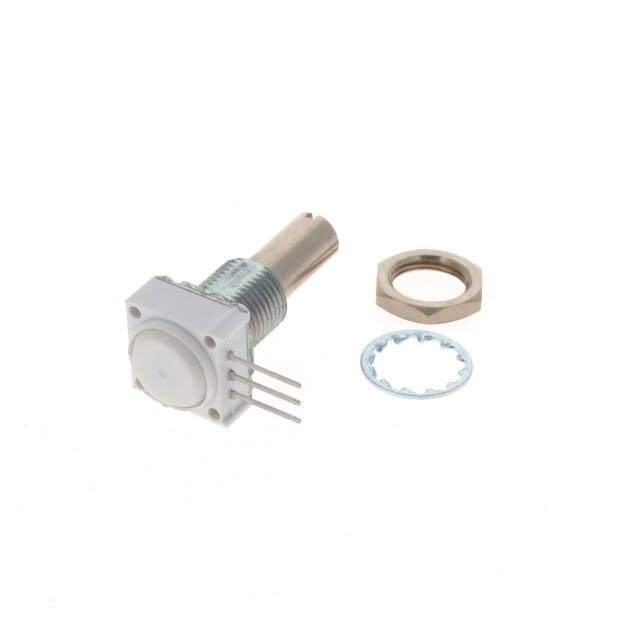

POT 250K OHM 1W CERMET LINEARManufacturer: Vishay Spectrol
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
250k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Cermet 1W PC Pins
Additional Information
Series: 149RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 250k |
| Power (Watts) | 1W |
| Tolerance | ±10% |
| Features | - |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.875"" (22.23mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.250"" (6.35mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
