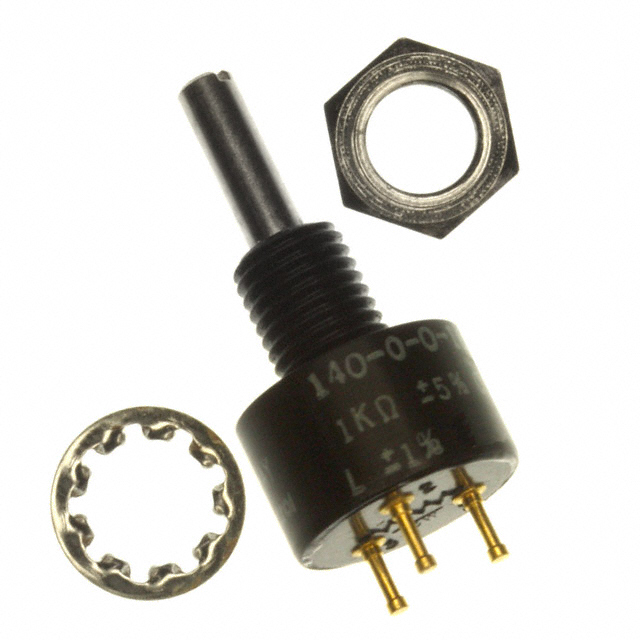

140B00102
POT 1K OHM 2W WIREWOUND LINEARManufacturer: Vishay Spectrol
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
Vishay Spectrol 140 Series 1k Ohm linear wirewound potentiometer, part number 140B00102. This single-gang, panel-mount unit features a 1.0-turn adjustment with a 330° rotation and a 2W power rating. The resistive element is wirewound, providing a stable temperature coefficient of ±20ppm/°C. Termination is via solder turret, and the bushing thread is 1/4-32. The actuator is slotted with a 0.1248" diameter and 0.700" length. This component is widely utilized in industrial control systems, test and measurement equipment, and consumer electronics where precise manual adjustment is critical.
Additional Information
Series: 140RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 1k |
| Power (Watts) | 2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Bulk |
| Temperature Coefficient | ±20ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Turret |
| Bushing Thread | 1/4-32 |
| Actuator Length | 0.700"" (17.78mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.1248"" (3.17mm) |
| Resistive Material | Wirewound |
| Taper | Linear |
| Rotation | 330° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
Request a Quote
Clients Also Buy

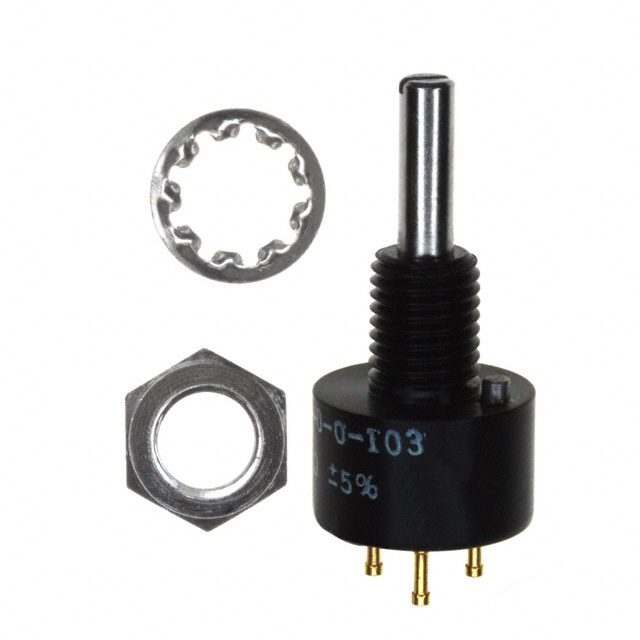

140B00103
POT 10K OHM 2W WIREWOUND LINEAR

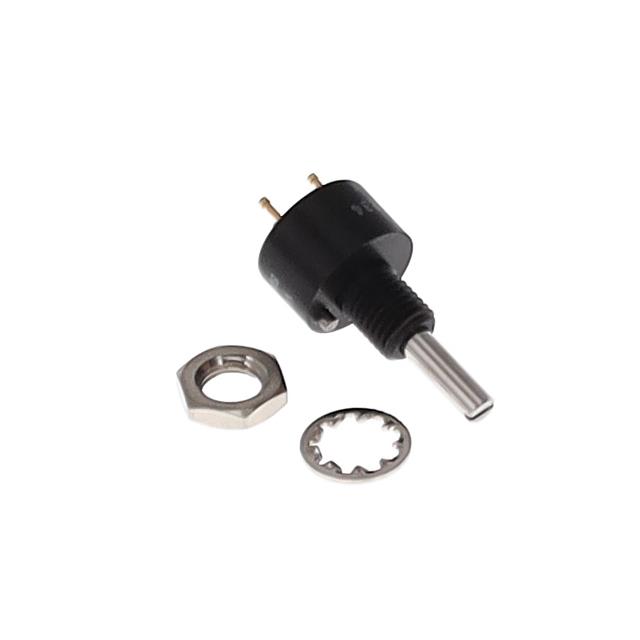

140B00203
POT 20K OHM 2W WIREWOUND LINEAR

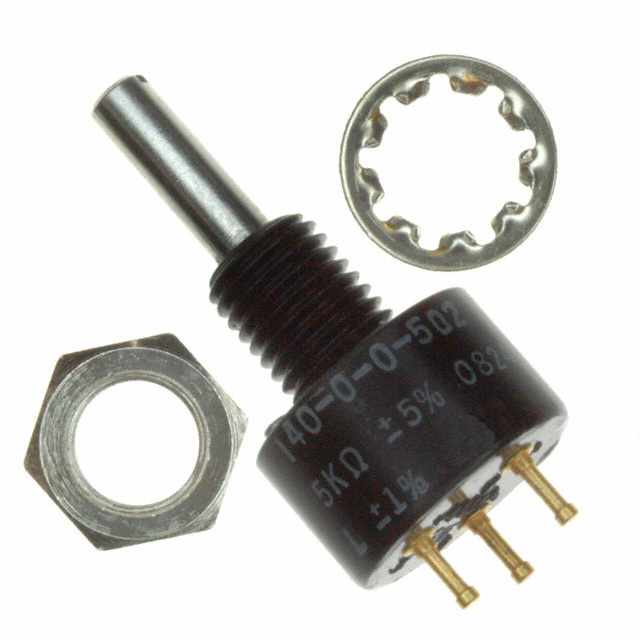

140B00502
