351HE0B4WA1S22
SENSOR ROTARY 360DEG WIRE LEADSManufacturer: Vishay Spectrol
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

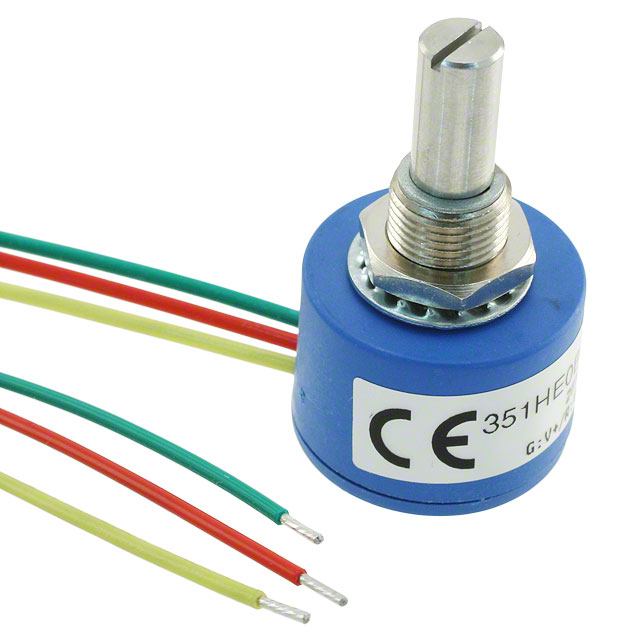

The Vishay Spectrol 351HE0B4WA1S22 is a Hall Effect rotary position sensor designed for precise angular measurement. Featuring a slotted shaft actuator, this component offers continuous 0° to 360° electrical and mechanical rotation. Its analog voltage output provides a clockwise increase signal, calibrated with a linearity of ±0.5%. Operating within a temperature range of -45°C to 125°C and requiring a supply voltage of 4.5V to 5.5V, the 351HE0B4WA1S22 is suitable for demanding applications. This sensor is commonly utilized in industrial automation, automotive systems, and robotics where accurate and robust position sensing is critical. Termination is via wire leads, and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Slotted Shaft |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage |
| Operating Temperature | -45°C ~ 125°C |
| Termination Style | Wire Leads |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | ±0.5% |
| Linear Range | - |
| Actuator Type | Slotted Shaft |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | Clockwise Increase |
| Programmable | - |
