DG534ADN-E3
IC AMP/VIDEO/MUX LP 4/8CH 20PLCCManufacturer: Vishay Siliconix
Categories: Special Purpose
Quality Control: Learn More
Vishay Siliconix DG534ADN-E3 is a high-performance analog switch designed for demanding applications. This 2-channel, SPDT (Single Pole Double Throw) device features a 2:1 multiplexer/demultiplexer configuration, enabling flexible signal routing. With a -3dB bandwidth of 500MHz, it is well-suited for video switching and ultrasound signal processing. The DG534ADN-E3 offers a low on-state resistance of 90 Ohms maximum, ensuring minimal signal degradation. It operates from a single 10V to 21V supply, with an extended operating temperature range of -40°C to 85°C. The component is housed in a 20-PLCC (9x9) surface-mount package, facilitating efficient board assembly. Its T-Switch configuration further enhances its utility in complex signal chains. This device finds application in industries requiring precise analog signal control and high-frequency operation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | T-Switch Configuration |
| Packaging | Bulk |

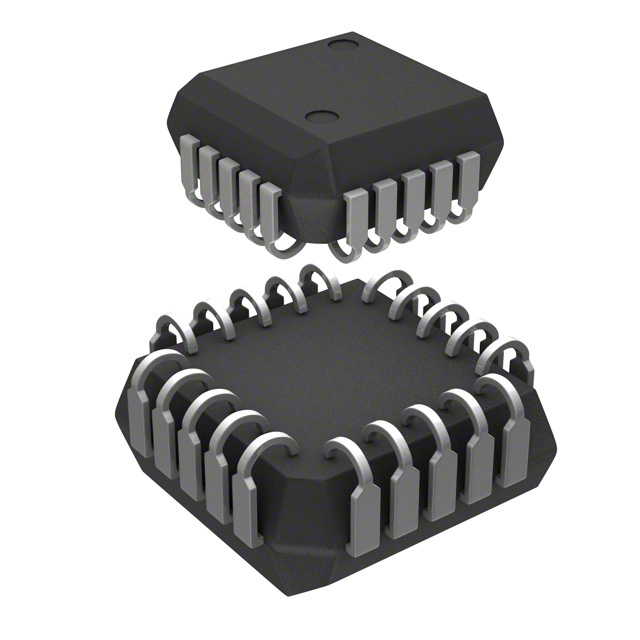

| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Ultrasound, Video |
| On-State Resistance (Max) | 90Ohm |
| -3db Bandwidth | 500MHz |
| Supplier Device Package | 20-PLCC (9x9) |
| Voltage - Supply, Single (V+) | 10V ~ 21V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 2 |
