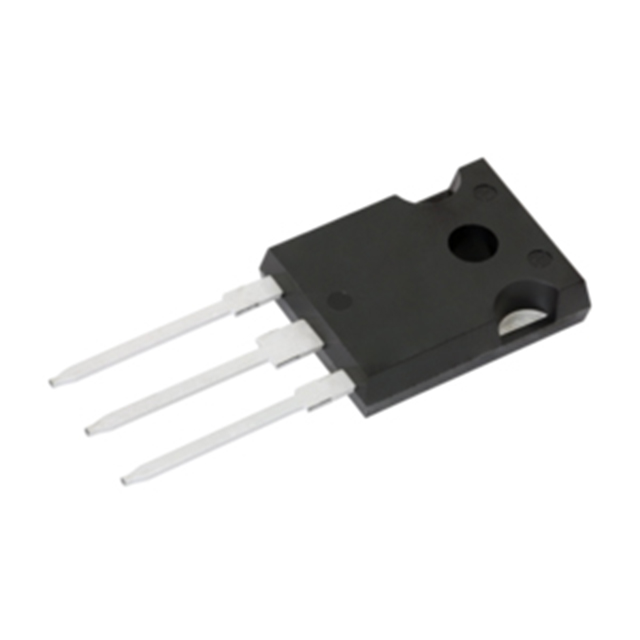

SQW44N65EF-GE3
E SERIES POWER MOSFET WITH FASTManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 47A (Tc) 500W (Tc) Through Hole TO-247AD
Additional Information
Series: ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
| Rds On (Max) @ Id, Vgs | 73mOhm @ 22A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 500W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-247AD |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 266 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5858 pF @ 100 V |
| Qualification | AEC-Q101 |
