SQSA84CENW-T1_GE3
AUTOMOTIVE N-CHANNEL 80 V (D-S)Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

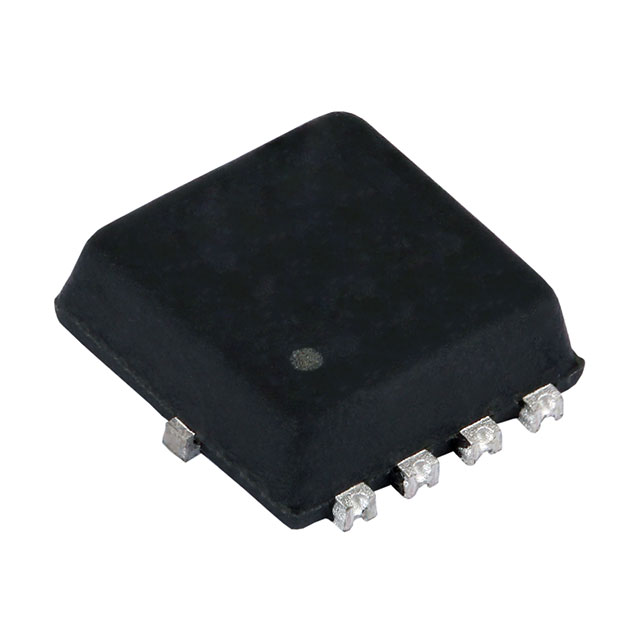

N-Channel 80 V 16A (Ta) 27W (Tc) Surface Mount PowerPAK® 1212-8W
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | PowerPAK® 1212-8W |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta) |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 3.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 27W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8W |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050 pF @ 25 V |
| Qualification | AEC-Q101 |
