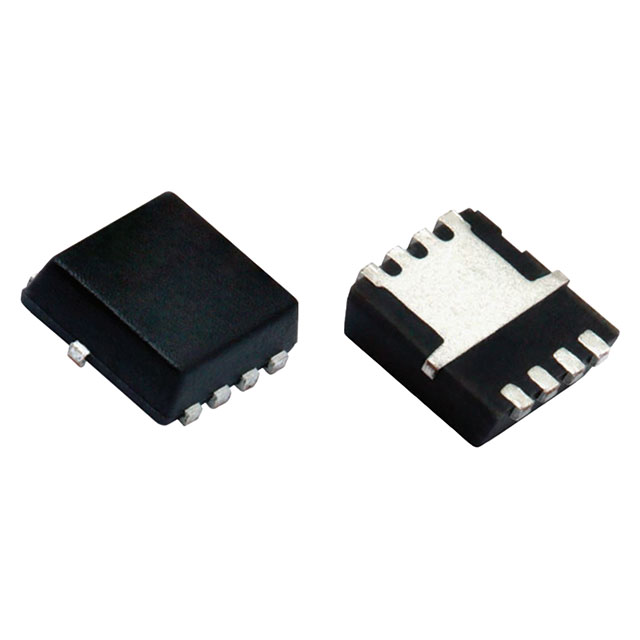

SQS482EN-T1_BE3
N-CHANNEL 30-V (D-S) 175C MOSFETManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 16A (Tc) 62W (Tc) Surface Mount PowerPAK® 1212-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® 1212-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 16.4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 62W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1865 pF @ 25 V |
