SQS142ENW-T1_GE3
AUTOMOTIVE N-CHANNEL 40 V (D-S)Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

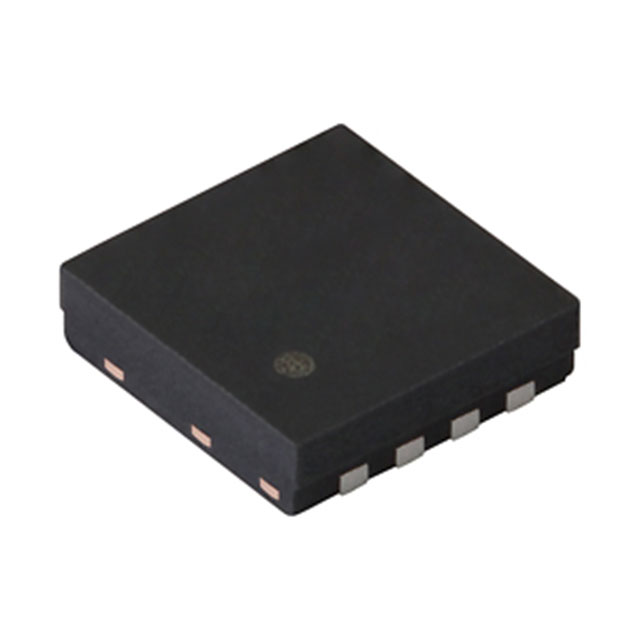

N-Channel 40 V 110A (Tc) 113W (Tc) Surface Mount, Wettable Flank PowerPAK® 1212-8SLW
Additional Information
Series: TrenchFET® Gen IVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® 1212-8SLW |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 113W (Tc) |
| Vgs(th) (Max) @ Id | 3.3V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8SLW |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1952 pF @ 25 V |
| Qualification | AEC-Q101 |
