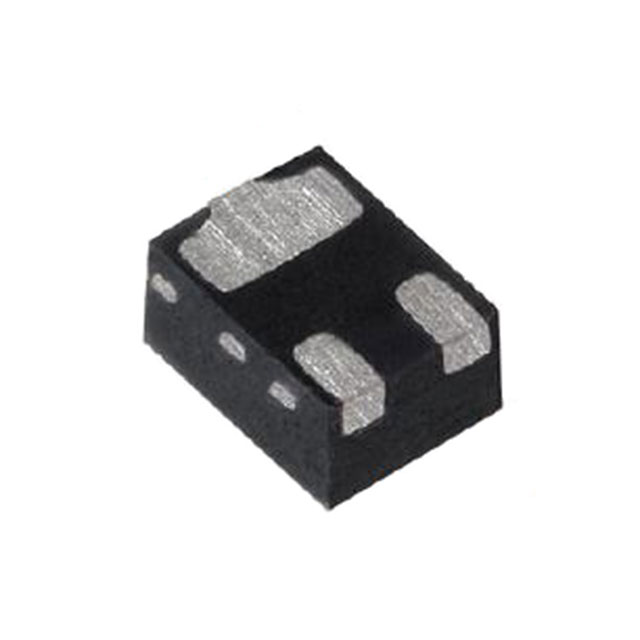

SIUD402ED-T1-GE3
MOSFET N-CH 20V 1A PPAK 0806Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 1A (Ta) 1.25W (Ta) Surface Mount PowerPAK® 0806
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | PowerPAK® 0806 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Rds On (Max) @ Id, Vgs | 730mOhm @ 200mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | PowerPAK® 0806 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.2 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 16 pF @ 10 V |
