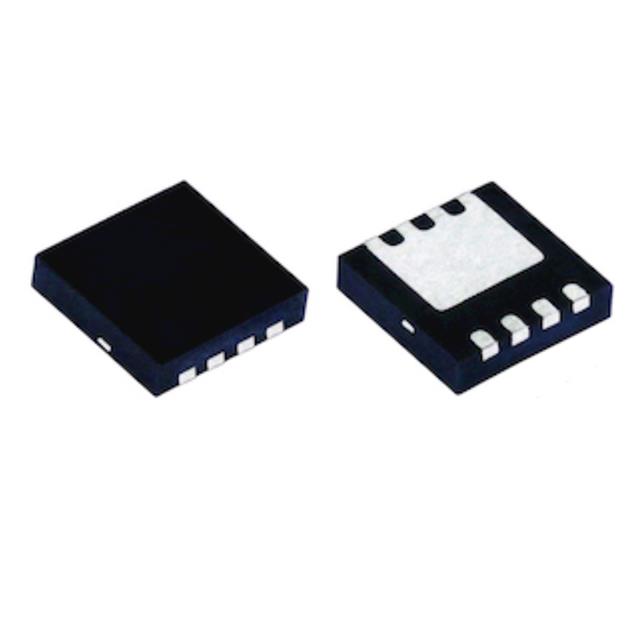

SISS4409DN-T1-GE3
P-CHANNEL 40 V (D-S) MOSFET POWEManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 40 V 17.2A (Ta), 59.2A (Tc) 4.8W (Ta), 56.8W (Tc) Surface Mount PowerPAK® 1212-8S
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | PowerPAK® 1212-8S |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 17.2A (Ta), 59.2A (Tc) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 4.8W (Ta), 56.8W (Tc) |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8S |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 126 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5670 pF @ 20 V |
