SIS444DN-T1-GE3
MOSFET N-CH 30V 35A PPAK1212-8Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix SIS444DN-T1-GE3 is an N-Channel Power MOSFET designed for high-efficiency power management applications. This device features a 30V drain-source voltage (Vdss) and a continuous drain current (Id) of 35A at 25°C (Tc). Optimized for low on-resistance, it achieves a maximum Rds(on) of 3.3mOhm at 10A and 10V, with a maximum power dissipation of 52W (Tc). The SIS444DN-T1-GE3 utilizes Vishay's PowerPAK® 1212-8 package for enhanced thermal performance and compact footprint, suitable for surface mounting. Key electrical characteristics include a gate charge (Qg) of 102 nC at 10V and input capacitance (Ciss) of 3065 pF at 15V. This MOSFET operates across a temperature range of -55°C to 150°C (TJ). It is commonly employed in automotive, industrial, and consumer electronics power conversion circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

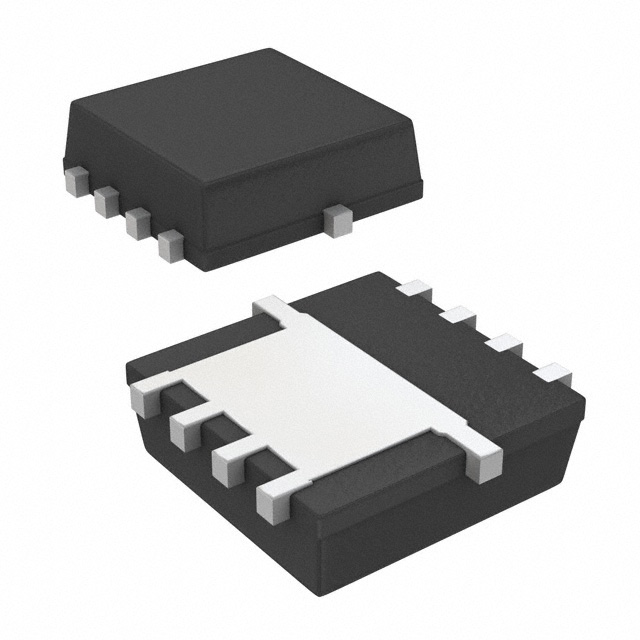

| Package / Case | PowerPAK® 1212-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 52W (Tc) |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3065 pF @ 15 V |
